Proper storage is essential to protect SMD stencils from damage and contamination. Specialized storage racks and archiving systems ensure that stencils are securely stored and quickly ready for use in the printer.
BECKTRONIC GmbH, based in Weitefeld, Westerwald, offers innovative and space-saving solutions for SMD stencil storage. With over 30 years of experience, BECKTRONIC is your expert for high-quality SMD stencils and their efficient archiving. Whether space-saving archive boxes, ESD cassettes, or customizable shelving systems – every SMD stencil finds its perfect place here.
Practical Archive Boxes and ESD Cassettes
BECKTRONIC’s archive boxes are specially designed for SMD stencil storage. They feature a rear opening, allowing a plastic hanger to be inserted for secure storage. The boxes are suitable for various stencil types, such as QuattroFlex or ZelFlex, and are available in two sizes: 570 x 570 mm and 720 x 570 mm. Matching shelf systems with sturdy pipes are compatible with both archive boxes and ESD cassettes, which are also offered in two sizes.
Customizable Shelving Systems with Zip Bags

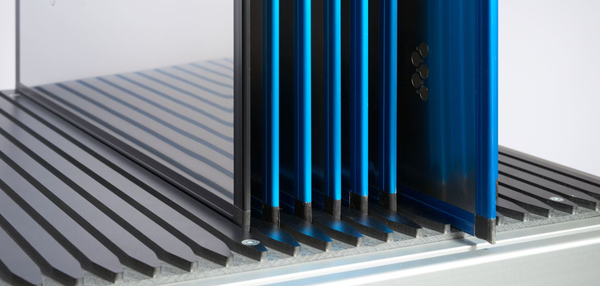

Another highlight is the customizable shelving systems, ideal for SMD stencil storage in zip bags. Featuring a system plate with guide grooves, the shelving can hold up to 100 bags made of PE or ESD material. On a footprint of only 1030 x 600 mm², the shelving offers capacities for up to 1,000 SMD stencils, depending on height. Height options range from 2 m to 3 m to meet specific requirements.
Customized Storage Racks for Framed SMD Stencils
For specific needs, BECKTRONIC provides custom-made racks. These are perfect for framed SMD stencils, such as BECsnap, BECdirect, or VectorGuard. Each rack is tailored precisely to the customer’s space, allowing secure storage of up to 70 VectorGuard stencils per shelf.
Secure and Custom SMD Stencil Archiving
“Our solutions for SMD stencil storage are always based on our customers’ individual requirements,” explains Managing Director Thomas Schulte-Brinker. “Even with limited space, our archiving systems enable clean and efficient stencil storage.”
